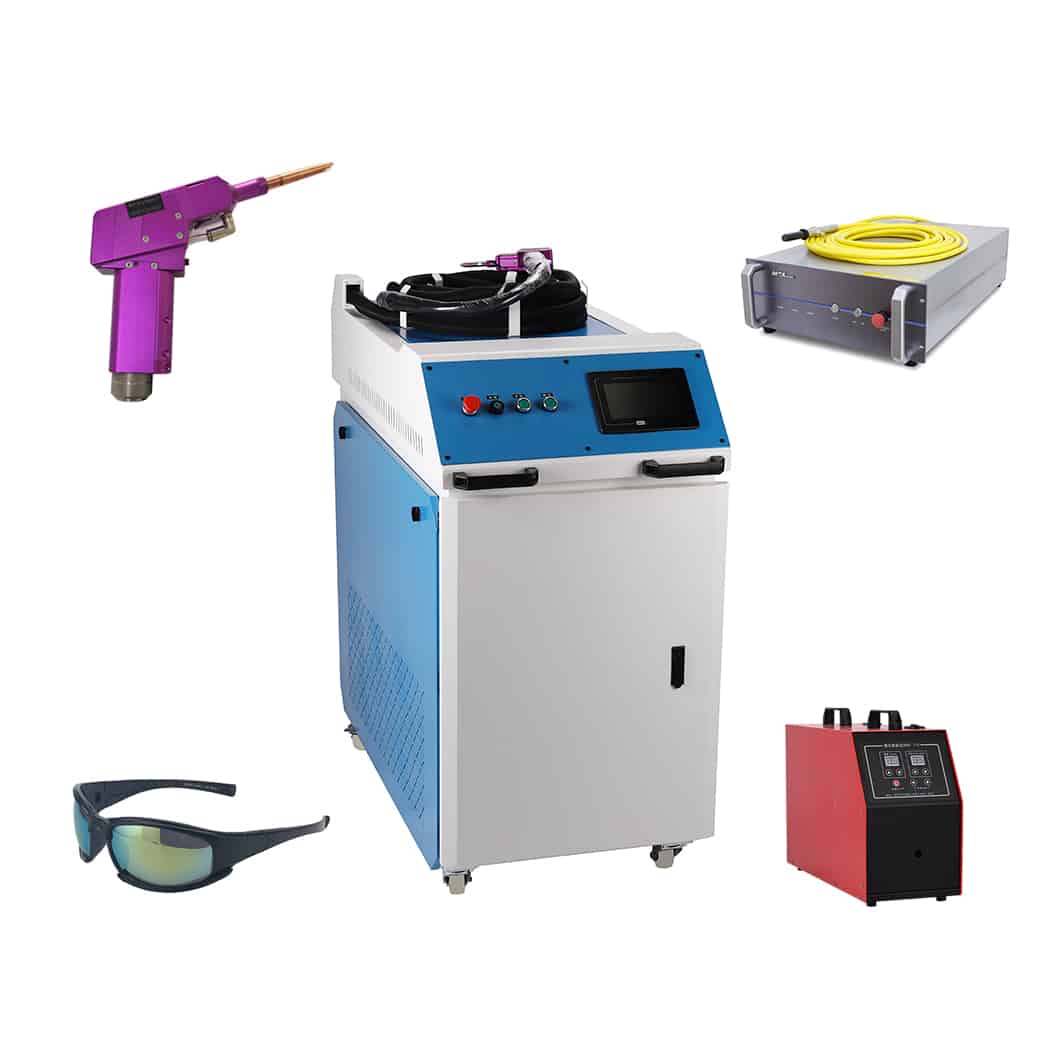

Handheld Laser Welding/Cleaning /Cutting Machine

Description

Product Features



3in1 Handheld fiber laser welding machine is suitable for welding / cutting / cleaning of
stainless steel, iron plate, aluminum plate and other metal materials

• Hand-held swinging welding head, six welding modes, cutting mode, cleaning mode,
  replaceable nozzles to adapt to different welding processes.
• Operation is simple, no welding work permit is required,
  Unskill worker can get started in 10 minutes can weld beautiful products.
• Handheld laser welding machine is 4-10 times faster than
  traditional TIG/MIG welding, saving 3-5 professional welders.
• Can weld metal products of different materials and thicknesses.
• Low welding heat, no deformation of the workpiece, smooth and beautiful,
  reducing the subsequent grinding process.

Product Parameters



Laser Beam	1000watt Raycus Continuous Wave Fiber Laser,Emission Wavelength 1080±5nm
Cooling	Built-in Industrial Chiller（Purified water or distilled water）
Cable length	Fiber cable lenght 10m, Operable cable length 8m
Weld Head	Hand-held swinging welding head, cleaning mode, cutting mode, six welding modes, replaceable nozzles to adapt to different welding processes
Wobble width	Adjustable 0-5mm
Protection Gas	Argon/Nitrogen           Pressure 5-10L/min
User Interface	For Laser Control:Power,Frequency,Duty cycle.  Motor control:working mode,Frequency,Spot width Gas control:Advance,Delay,Proportion
Language	Chinese-English-Russian-Korean-Vietnamese
Safty	Class 4 laser equipment,Machine with CE,FDA certificate. The machine comes with error alarm function，emergency stop,chiller alarm.
Power Requirement	220±10% V AC, 50/60Hz   CUSTOMIZATION
Operating Ambient Temperature(℃)	10~40℃
Humidity (%)	70
Dimensions(W×H×D)	700*1150*1200mm
Weight	245kg

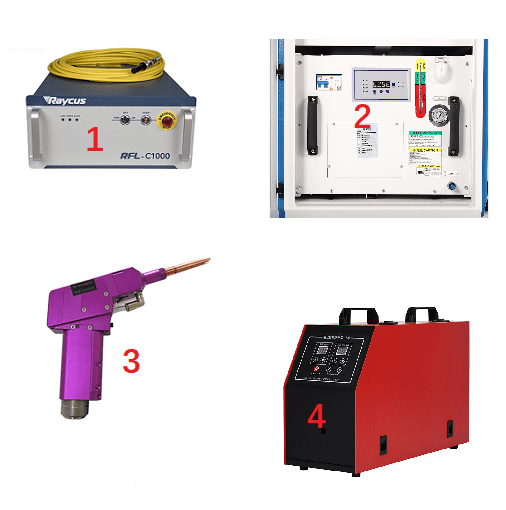

Product Details



1.Laser Source Raycus /JPT/ MAX/ IPG

• High efficiency of electro-optic conversion
• Resistance to high resistance
• Output fiber length can be customized
• Maintenance free operation
• Wide modulation frequency range

2.Water Chiller

• Built-in industry Chiller, No External Chiller Required
• Built-in water temperature alarm function for safe production
• Dual temperature and dual control

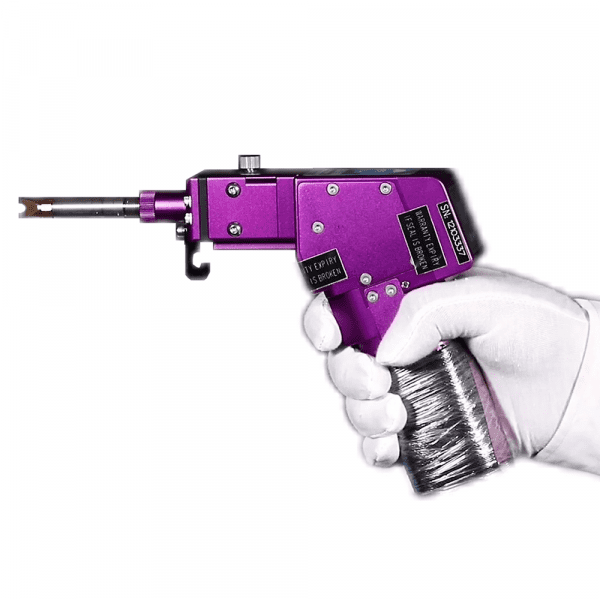

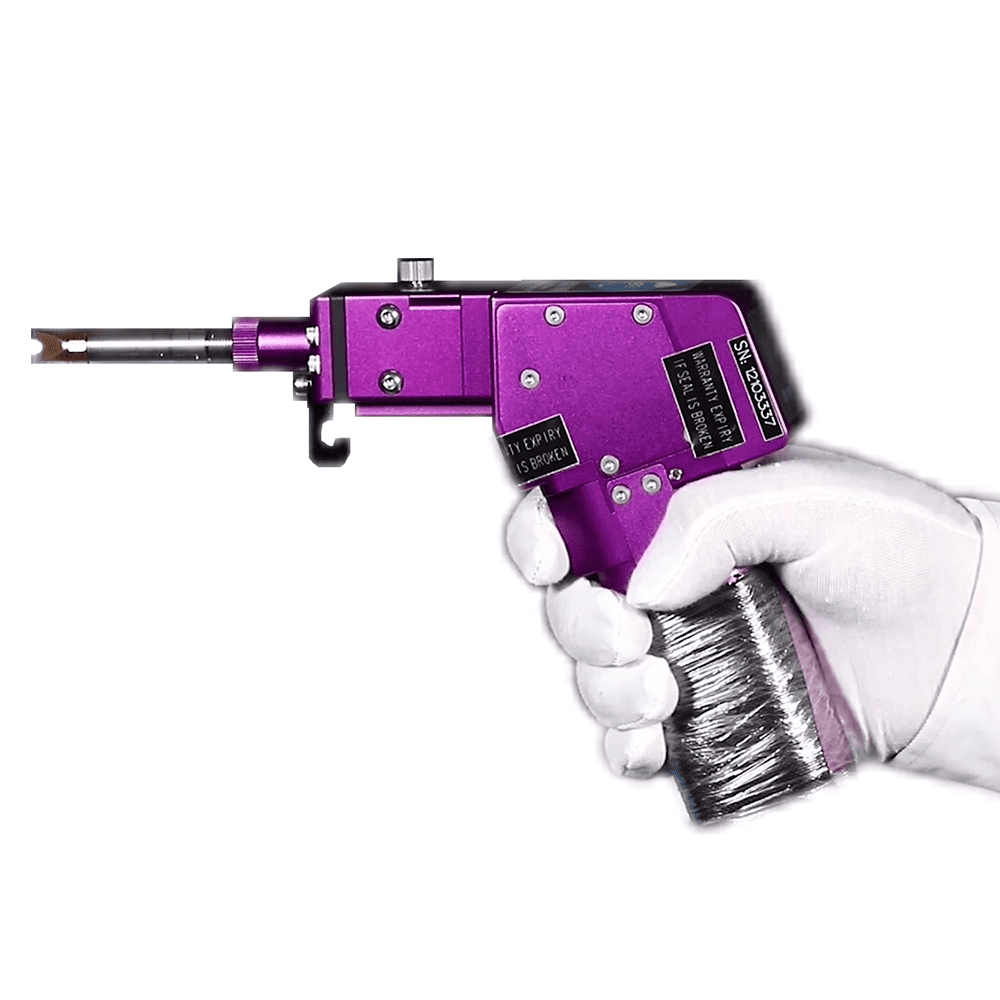

3.Laser Welding Head

• SIX different welding modes to meet different welding process
• Adjustable welding width with wobble function to meet wider seams
• The machine is equipped with auxiliary weld cleaning function
• The machine is equipped with auxiliary cutting function
• Adjustable laser power to adapt to different thickness materials

4.Auto Feeder Syetem

• Automatic wire feeder for less than 1.6mm seam welding
• Adjustable speed
• Wire roll weight less than 15kg
• Wire diameter 0.8,1.0,1.2,1.6mm, Aluminum 1.2mm

Application Field



Widely used in kitchen and bathroom industry, home appliance industry advertising industry, stainless steel door and window industry,
handicraft industry, mold industry, household products industry, furniture industry, auto parts industry, etc.

About us



Shenzhen DaG Technology Industrial Co., Ltd is a laser machinery manufacturers and suppliers.we are in the industry of Laser marking machine, Laser welding machine, Laser cutting machine, Laser cleaning machine. we provide customers with pre-sale and after-sale equipment design and service according to the size of our products，and provide free consulting services during the production process without any problems.

In recent years, companies in the same industry in many countries and regions have also purchased laser marks, laser welding machines, jewelry laser welding machines, 3015/1390 laser cutting machines, pulse/continuous laser cleaning machines and other mechanical equipment.

If you are interested in buying any products, please contact us, we will provide you with the best service and preferential prices.

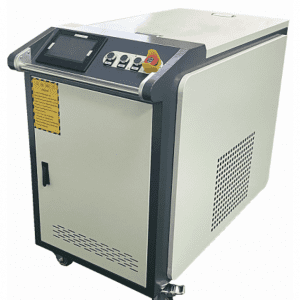

Our Portable Handheld Laser Welding Machine
