3015 CNC Fiber Laser Tube And Sheet Cutting Machine

Description

3015 CNC Fiber Laser Tube And Sheet Cutting Machine

Product description



The design metal plate tube fiber laser cutting machine DG-1530FT is equipped with a Chinese brand fiber laser device,
laser power from 1KW to 8KW, additional tube cutting function, automatic tube feeding system, flexible and convenient.
It can be used for cutting, grooving and drilling of various metal pipes, such as round, square, rectangular, triangular,
pentagonal and other centrally symmetric closed pipes.

We also have other sizes to choose from: 5050, 1390, 1313, 1325, 1540, 1560, 2040, 2060, for more details, please email us.

Product parameters



Model	DG-1530FT
Working area	1500*3000mm
Fiber laser power	Optional:300w/500w/750w/1500w/ 2000w/3000w/4000w/6000w/8000w
Max cutting speed	0-25m/min
Repeat positioning accuracy	0.02mm
Total electric power	<13kw
power supply	380v/50Hz/60Hz/60A
Environment temperature	0-35°C
Continuous working time	24 hours
Weight of the machine	4000kg
Natural life of laser	100000hours
Laser wavelength	10.6um
Cooling System	water cooling
Other optional	DG-1530FD:Exchange platform;DG-1530FP:Fiber protect cover

Product Features



• Automatic pipe feeding system, flexible and convenient.
• It could be used for cutting, slotting, drilling for various of metal pipes, such as round pipes, square pipes,
  rectangular pipes, triangle pipes, pentagonal pipes and other center symmetrical closed pipes.
• Uses super-light cross beams to minimize the machine running loads.
• The machine bed is of good rigidity and strength by hybrid welding of high quality steel tube and plate.
• The machine is equipped with environmental temperature automatic supply device to ensure high precision and stable cutting.
• The laser source adopts special protection cabinets and constant temperature and humidity control technology,
  which can prevent laser from moisture condensation in special conditions and avoid the malfunction of the machine effectively.
• Safety guardrail is not only convenient for material feeding, but also can effectively remove the risk while
  the cross beam running in high speed
• The sophisticated clamp and lifter device is optional.

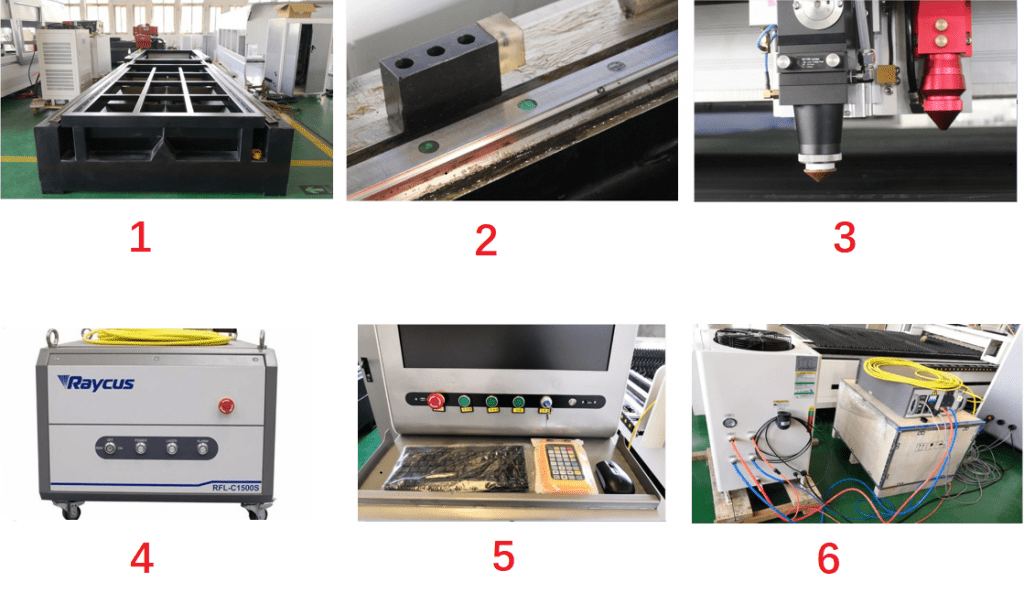

Main parts





1.Machine Bed Original:
China Industrial heavy duty steel welding structure.Thermal aging treatment, will not deform after long time using.

 2.linear rail Brand:
Hiwin Original: TAIWAN Configure with Hiwin linear rail,high accuracygrinding type gear and racks,
Motovario reducer for all axis, to ensure durable and high precision for long time processing.

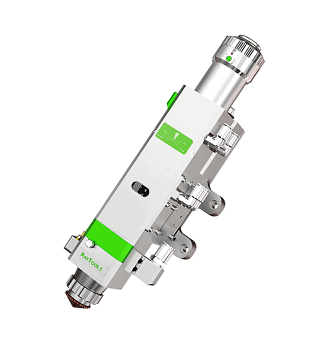

3.Laser Head Brand:
Raytools Original: Germany Adopt professional Raytools auto feeding laser cutting head, release your hands.
Optimized optical configuration and smooth and efficient airflow design

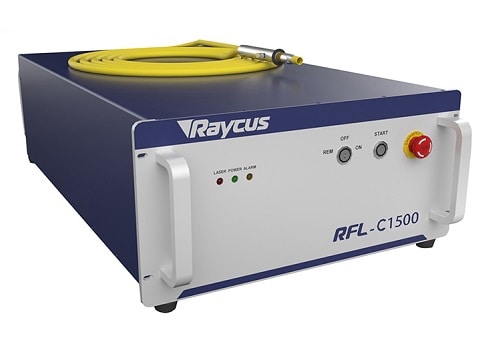

4.Laser surce Brand:
Raycus Original: Domestic The best performand and the most famouse laser source in China.
Popular used with its nice performance.Germany IPG, America Nlight are optional.

5.DSP controller Original:
Domestic DSP controller is clear and easy to operate, even there is some distance from the fiber cutting machine.

 6.Water Chiller:
Strong enough water chiller, which use to protect your laser source.
And confirm it could well work, whencutting the metal plates, under high temperature during work.



Application field



This machine is easy cut metal plates and tubes
Optional 3m or 6m tube cutting.
New design metal plate and tube fibre laser cutter DG-1530FT is specially
for cutting carbon steel plates(pipes),stainless steel(pipes),galvanized steel plates and pipes ,
electrolytic zinc-coated steel(pipes),aluminum sheet(pipes) and brass(pipes) and other thin metal materials.
DG-1530FT is widely used in kitchen appliance,electrical control box ,mechanical equipment,
electrical equipment,lighting hardware fittings,elevator manufacturing,auto parts ,hardware and metal processing.

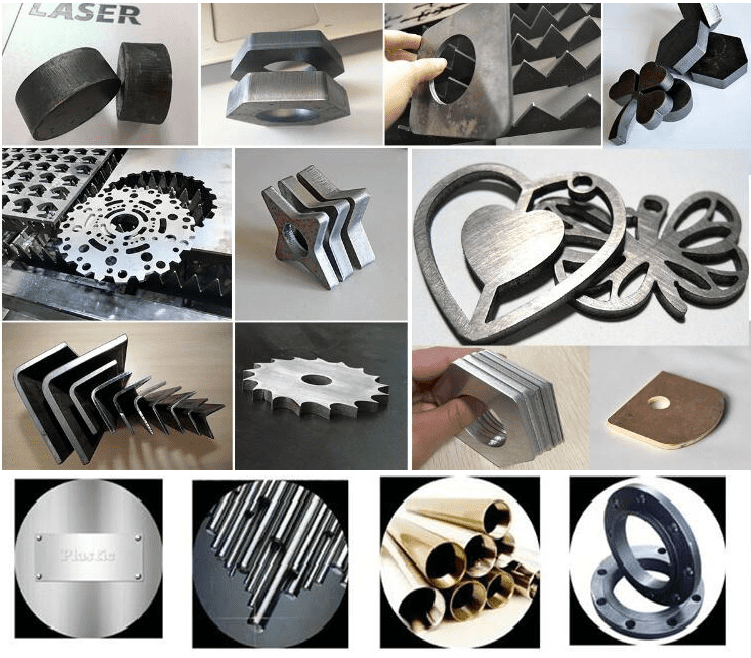

Our Samples of laser cutting machine for metal:



About us



Shenzhen DaG Technology Industrial Co., Ltd is a laser machinery manufacturers and suppliers.we are in the industry of Laser marking machine, Laser welding machine, Laser cutting machine, Laser cleaning machine. we provide customers with pre-sale and after-sale equipment design and service according to the size of our products，and provide free consulting services during the production process without any problems.

In recent years, companies in the same industry in many countries and regions have also purchased laser marks, laser welding machines, jewelry laser welding machines, 3015/1390 laser cutting machines, pulse/continuous laser cleaning machines and other mechanical equipment.

If you are interested in buying any products, please contact us, we will provide you with the best service and preferential prices.

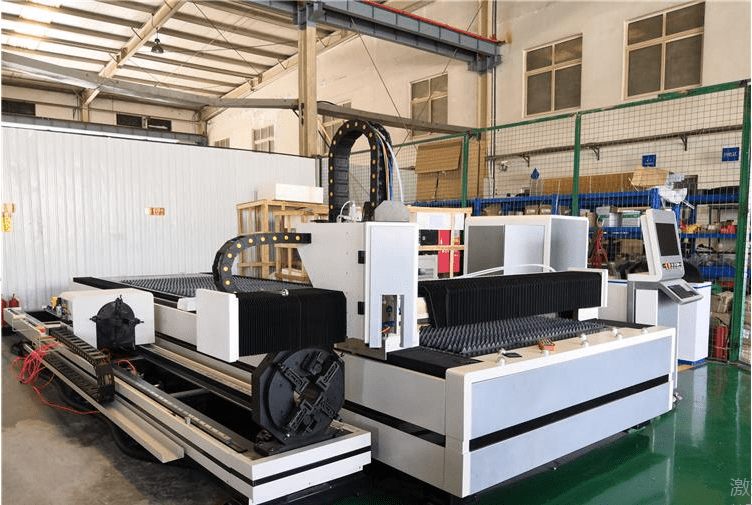

Our 3015 Fiber Laser Cutting Machine
