Pulsed Fiber Laser Sources

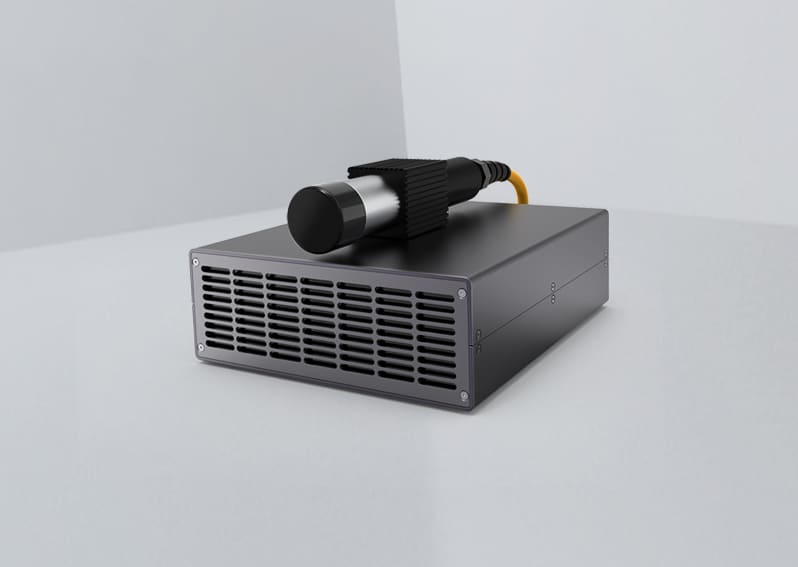

20X Q-SWITCH PULSED FIBER LASER

Product Description: Q-switch series pulsed fiber laser is designed based on Q-switch oscillator and MOPA. The laser is transmitted by fiber and isolator, and is controlled through a 25-pin interface. The Q-switched pulse fiber laser is suitable for intergration, and could meet the requirements of plastic marking, metal marking, engraving, coating removal,fine cutting, drilling, etc.

30X 50X Q-SWITCH PULSED FIBER LASER

Product Description: Q-switch series pulsed fiber laser is designed based on Q-switch oscillator and MOPA, offer a variety models from 30X to 50X. The laser is transmitted by fiber and isolator, and is controlled through a 25-pin interface. The Q-switched pulse fiber laser is suitable for intergration, and could meet the requirements of plastic marking, metal marking, engraving, coating removal,fine cutting, drilling, etc.

20W SMALL CASE Q-SWITCH PULSED FIBER LASER

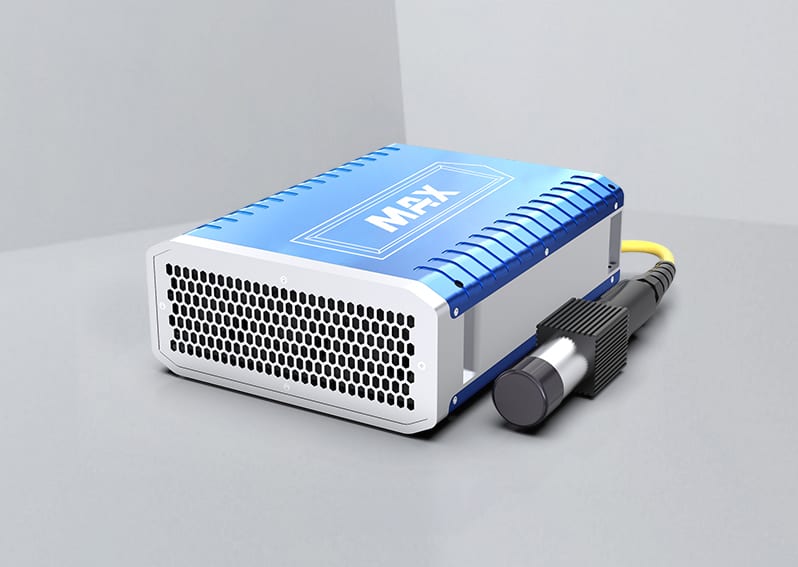

30W SMALL CASE Q-SWITCH PULSED FIBER LASER

Product Description: The newly upgraded Q-switch series pulsed fiber laser is designed based on Q-switch oscillator and MOPA, the laser is transmitted by fiber and isolator, and is controlled through a 25-pin interface. The Q-switched pulse fiber laser is suitable for intergration, and could meet the requirements of plastic marking, metal marking, engraving, coating removal,fine cutting, drilling, etc.

20H SMALL CASE Q-SWITCH PULSED FIBER LASER

30H Q-SWITCH PULSED FIBER LASER

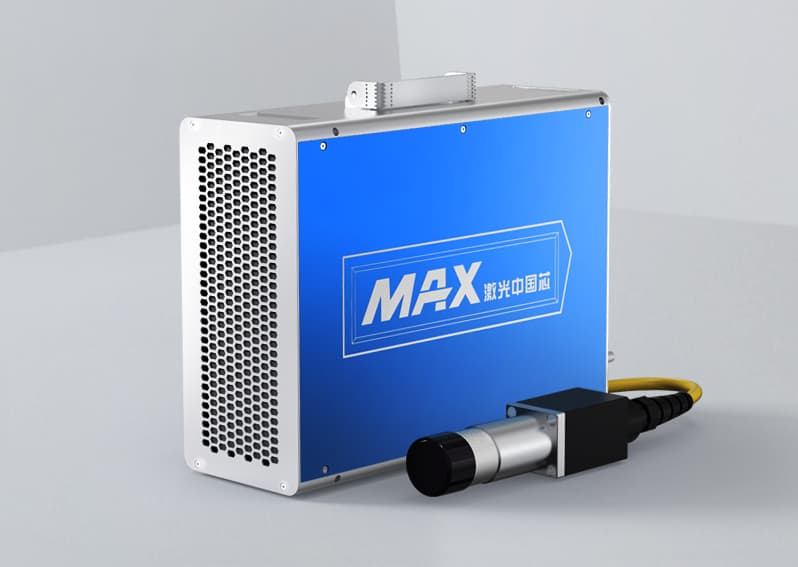

10W-70W Q-SWITCH PULSED FIBER LASER

Product Description:Q-switch series pulsed fiber laser is designed based on Q-switch oscillator and MOPA, offer a variety models from 10W-70W, and the peak power could reach 7KW. The laser is transmitted by fiber and isolator, and is controlled through a 25-pin interface. The Q-switched pulse fiber laser is suitable for intergration, and could meet the requirements of plastic marking, metal marking, engraving, coating removal,fine cutting, drilling, etc.

20M MOPA PULSED FIBER LASER

Product Description: MOPA pulsed fiber laser are designed based on MOPA structure, the pulse width and frequency can be adjustable,which makes more application possible. The pulse width could be adjusted from 2-350ns or 2-500ns, the peak power could reach up to 10KW, and the frequency could reach up to 4000kHz. The MOPA pulse fiber laser is ideal for alumina black marking,stainless steel multicolour marking, plastic marking, fine removel, laserengraving, etc.

30M-70M MOPA PULSED FIBER LASER

Product Description:MOPA pulsed fiber laser are designed based on MOPA structure, the pulse width and frequency can be adjustable,which makes more application possible. The pulse width could be adjusted from 2-350ns or 2-500ns, the peak power could reach up to 10KW, and the frequency could reach up to 4000kHz. The MOPA pulse fiber laser is ideal for alumina black marking,stainless steel multicolour marking, plastic marking, fine removel, laserengraving, etc.

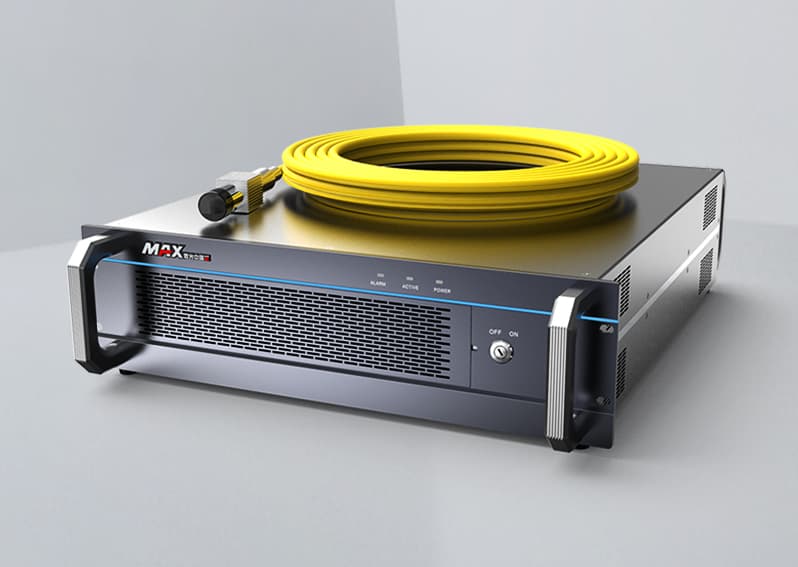

100W-200W Q-SWITCH PULSED FIBER LASER

Product Description: Q-Switch Pulsed Fiber Laser (MFP 100W-200W) Series are maintenance-free fiber lasers based on the Q-switch technology and MOPA. These lasers deliver light whose emission wavelength is centered at 1060nm and peak power is up to 10KW or above. The light is guided to the work piece via a flexible metal-sheathed fiber cable. The laser’s running parameters are set by the user’s special controller via a DB-25 interface.

100M+-300M+ MOPA PULSED FIBER LASER

Product Description: MOPA pulsed fiber laser are designed based on MOPA structure, the pulse width and frequency can be adjustable,which makes more application possible. The pulse width could be adjusted from 10-500ns, the peak power could reach up to 10KW, and the frequency could reach up to 4000kHz. The MOPA pulse fiber laser is ideal for alumina black marking,stainless steel multicolour marking,plastic marking, fine removel, laserengraving, etc.

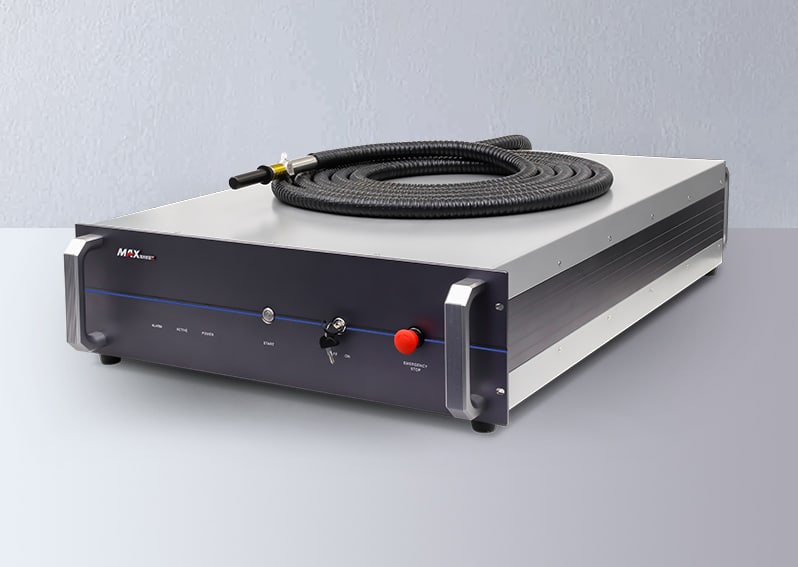

500W MOPA PULSED FIBER LASER

Product Description: The MFPT-500W MOPA fiber laser is one of the cutting-edge products of Maxphotonics, which is constructed with a main oscillator and a high power fiber amplifier (MOPA).Multiple power options and compact structure. Easy to operate, overall maintenance free, can be directly integrated into user equipment. A periodic pulse sequence with a wavelength of about 1060 nm and a peak power of more than 250 KW is used. The operating parameters of the laser are set by the 25Pin control interface, and the special controller of the customer can be used for the handheld laser. Mainly used in laser cleaning.
