Product Description
The MFSC 500W series lasers are water-cooled and maintenance-free and with a wall plug efficiency of more than 25% and deliver high efficiency, high reliability and high performance,which can be used for cutting, welding and drilling of metal materials such as stainless steel, carbon steel, aluminum and copper. It is widely used in sheet metal cutting, metal processing, home appliance manufacturing, automobile manufacturing and other fields.
Up to 6KW Output From CW Single Module Series
Better beam quality vs. multi module lasers Greatly improved efficiency
Excellent Material Processing Performance
High speed in thin sheet cutting Strong capability in thick material processing
Compact Design, Maintenance Free
Highly integrated system with modular design Easy maintenance significantly reduce TCO
Smaller Size with Higher Stability
>60% reduction in volume Higher flexibility when integrated in to system
High Level Vertical Integration
All key components are designed and produced in house Strict quality control, high consistency and reliability
Product Parameters
| Model | MFSC-500W |
| OPTICAL SPECIFICATIONS | |
| Nominal Power | 500W |
| Mode of Operation | CW/Modulated |
| Polarization | Random |
| Power Tunability | 10 to 100% |
| Wavelength | 1080 ± 10 nm |
| Power Stability | ±1 % |
| Laser Beam Quality M² | 1.3(20u QBH) 1.8(50u QBH) |
| Modulation Frequency | ≤20 kHz |
| Preview Red Light Power | 150 μW |
| FIBER DELIVERY SYSTEM | |
| Interface | QBH |
| Length | 10m standard, other lengths optional |
| Diameter | 50(14/20/25/30/100) μm |
| Bending Radius | 200 mm |
| ELECTRICAL RATINGS | |
| Supply Voltage | 220VAC (-15% to +10%) Single-phase |
| OTHER SPECIFICATIONS | |
| Operating Temperature | +10 to +40℃ |
| Storage Temperature | -10 to +60℃ |
| Humidity | 10 to 85% |
| Cooling Method | Water Cooling |
| Cooling Medium | Distilled water/ Glycol Antifreeze |
| Dimension | 725.9×482.6×154.7 mm |
| Weight | 35(±2) kg |
Sample Show

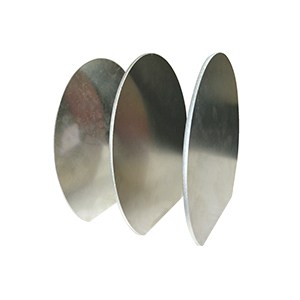

Aluminum Cutting

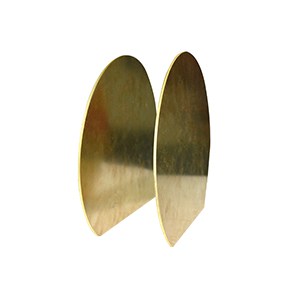

Copper Cutting

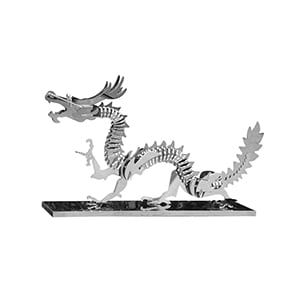

Cutting Crafts

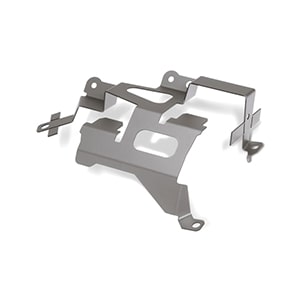

Stainless Steel Cutting
