2000W-3000W SINGLE MODULE CW FIBER LASER

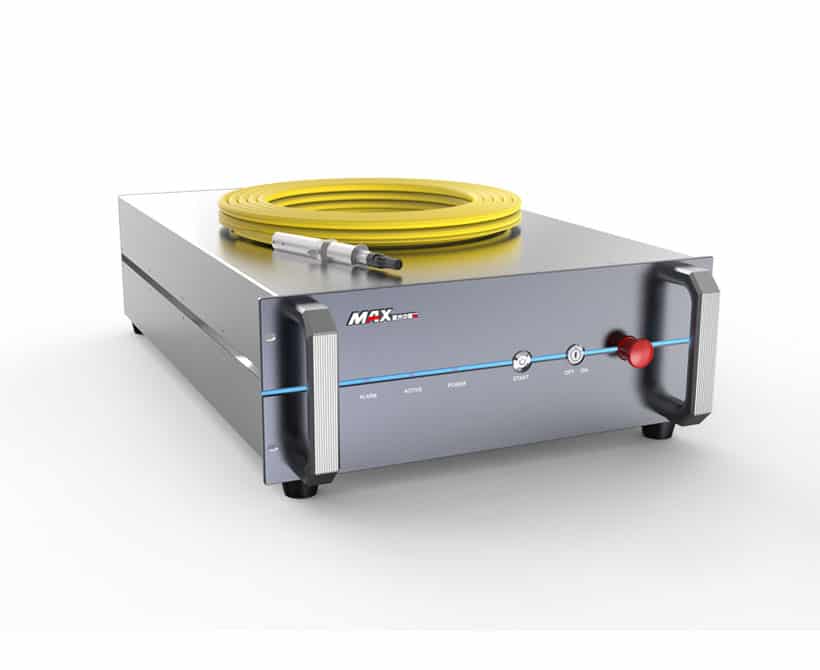

2000w 3000w max cw fiber laser

Product Description

The new generation of Single Module 2000W-3000W Fiber Lasers which combined with high power, compact size, superior beam quality, and high light conversion efficiency. It can meet the requirements of precision processing, 3C product welding and high-reflective material cutting ability are significantly improved. It is suitable for remote processing, high-frequency laser cutting and clean surface cutting. It can be quickly and conveniently integrated into machine tool equipment and large-scale factory automation production line. Product advantages: 1. More reliable and saving power. 2. Easy to maintain. 3. Easy to operate.

1.icon

Up to 6KW Output From CW Single Module Series

Better beam quality vs. multi module lasers Greatly improved efficiency

2.icon

Excellent Material Processing Performance

High speed in thin sheet cutting Strong capability in thick material processing

3.icon

Compact Design, Maintenance Free

Highly integrated system with modular design Easy maintenance significantly reduce TCO

4.icon

Smaller Size with Higher Stability

>60% reduction in volume Higher flexibility when integrated in to system

5.icon

High Level Vertical Integration

All key components are designed and produced in house Strict quality control, high consistency and reliability

Product Parameters

ModelsMFSC-2000WMFSC-3000W
OPTICAL SPECIFICATIONS
Nominal Power2000W3000W
Mode of OperationCW/Modulated
PolarizationRandom
Power Tunability10 to 100%
Wavelength1080 ± 10 nm
Power Stability±1 %
Laser Beam Quality, BPP1.1 to 1.5 mm x mrad (50μm QBH)
2.8 to 3.6 mm x mrad (100μm QBH)
Modulation Frequency≤5 KHz
Preview Red Light Power200 μW
FIBER DELIVERY SYSTEM
InterfaceQBH (LOC)
Length15m standard, other lengths optional20m standard, other lengths optional
Diameter50(100/200) μm
Bending Radius200 mm
ELECTRICAL RATINGS
Supply Voltage400VAC (-15% to +10%) 3-phase
OTHER SPECIFICATIONS
Operating Temperature+10 to +40℃
Storage Temperature-10 to +60℃
Humidity10 to 85%
Cooling MethodWater Cooling
Cooling MediumDistilled water/ Glycol Antifreeze
Dimension482.6×950×193 mm
Weight72(±3) kg80(±3) kg



Sample Show

4 6mm brass cutting

4-6mm Brass Cutting

4 8mm stainless steel cutting

4-8mm Stainless Steel Cutting

6 18mm carbon steel cutting

6-18mm Carbon Steel Cutting

4 18mm metal cutting

4-18mm Metal Cutting
